Design Specification

Document Version: 1.0

Date: October 30, 2025

This page provides an overview. View the full Design Specification on GitHub.

Purpose

The Design Specification provides technical implementation details for CDM developers and maintainers. It covers the software architecture, data structures, algorithms, and coding standards.

System Architecture

┌─────────────────────────────────────────────────────┐
│              Client Applications                    │
│          (CLI, R Package, Custom)                   │
├─────────────────────────────────────────────────────┤
│                   C API Layer                       │
│              (CDM.h / CDM.cpp)                      │
├─────────────────────────────────────────────────────┤
│              Model Orchestration                    │
│                 (Model.hpp)                         │
├──────────┬──────────┬──────────┬────────────────────┤
│ Atmos.   │ Wind     │ Droplet  │ Transport /        │
│ Props    │ Profile  │ Size     │ Deposition         │
├──────────┴──────────┴──────────┴────────────────────┤
│           SUNDIALS / Ceres / Blaze                  │
└─────────────────────────────────────────────────────┘

Model Component Diagram

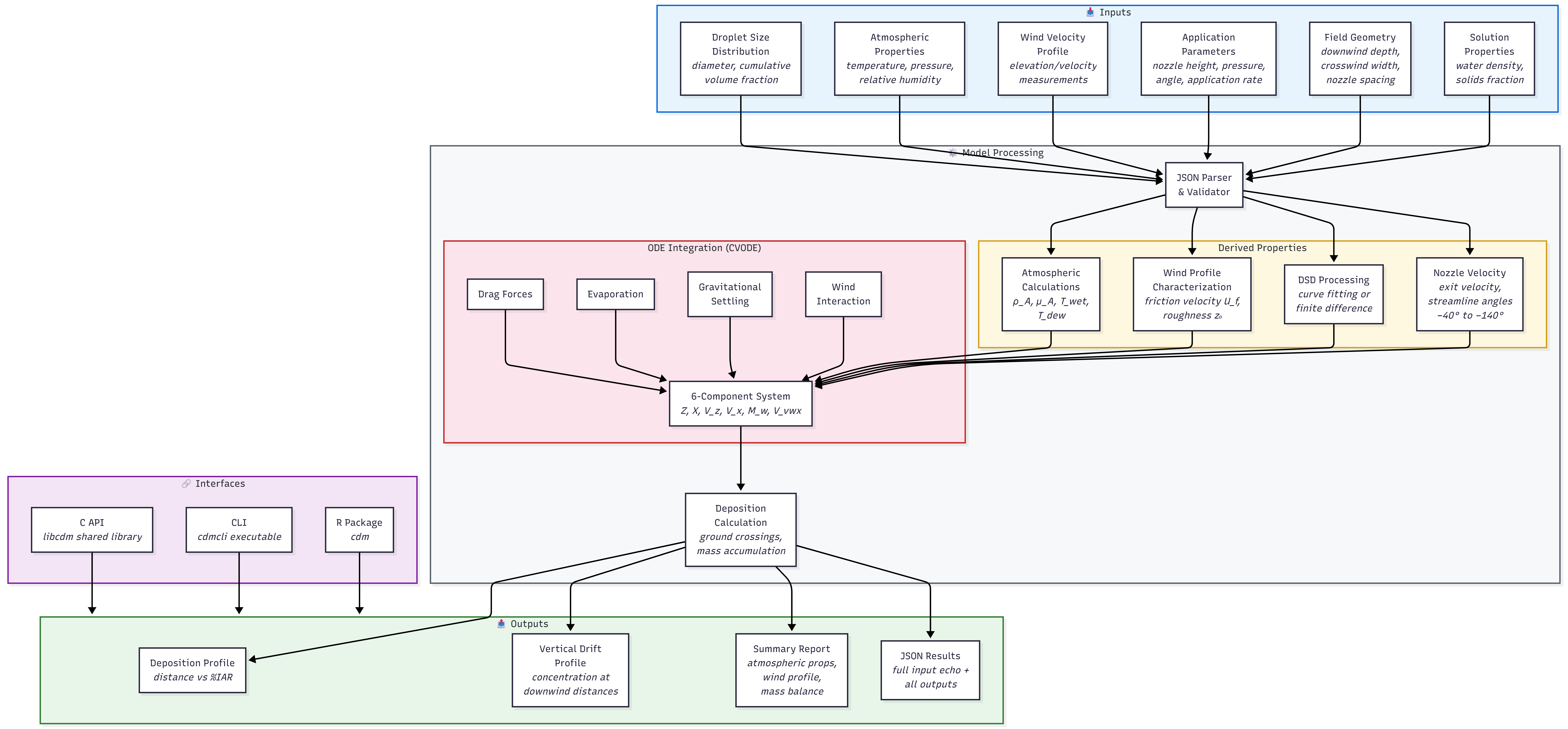

The following diagram shows how inputs flow through the model processing pipeline to produce outputs, and how the different interfaces connect to the system.

CDM model component diagram

Module Design

Source Files

File	Purpose
`CDM.cpp`	C API implementation
`CDMCLI.cpp`	Command-line interface
`Model.hpp`	Model orchestration and state
`AtmosphericProperties.cpp/hpp`	Atmospheric property calculations
`WindVelocityProfile.cpp/hpp`	Wind profile characterization
`DropletSizeModel.cpp/hpp`	Droplet size distribution processing
`DropletTransport.cpp/hpp`	ODE-based droplet transport
`NozzleVelocity.cpp/hpp`	Nozzle exit velocity calculations
`Deposition.cpp/hpp`	Deposition accumulation and reporting
`Serialization.cpp/hpp`	JSON input/output
`CVodeIntegrator.hpp`	CVODE wrapper with RAII
`Interpolate1D.hpp`	1D interpolation utilities
`Constants.hpp`	Physical constants
`CVodeError.hpp`	CVODE error handling

Key Design Decisions

C API with C++ internals: Public API uses C for maximum interoperability; implementation is modern C++17
RAII throughout: All resources managed via smart pointers and RAII wrappers
Header-only templates: Model.hpp, CVodeIntegrator.hpp, Interpolate1D.hpp are header-only
Opaque pointer pattern: cdm_model_t hides C++ implementation from C clients

Algorithm Design

ODE Integration

Solver: SUNDIALS CVODE with BDF method
Tolerances: Relative 1×10⁻⁴; component-specific absolute tolerances
Root finding: Used to detect ground-level crossings
Right-hand side: Computes drag forces, gravitational settling, evaporation, and wind interaction

Droplet Size Distribution

Curve fitting: Ceres Solver performs non-linear least squares fit to CDF
Parameterization: Log-normal or similar distribution models
Discretization: Distribution divided into size classes for transport integration

Wind Profile

Logarithmic law: Wind velocity follows log-law profile above canopy
Parameter estimation: Friction velocity and roughness length from measurements
Optimization: Ceres Solver for parameter fitting

Build System

CMake Configuration

Minimum CMake version: 3.21
C++ standard: C++17
Package manager: vcpkg (with manifest mode)
Presets: CMakePresets.json for common configurations

Directory Structure

Directory	Contents
`include/cdm/`	Public C API header
`src/`	C++ implementation files
`tests/`	Test case JSON files
`R/cdm/`	R package source
`cmake/`	CMake helper scripts
`docs/`	Documentation

Code Quality Standards

Modern C++17 idioms
Consistent naming: snake_case for C API, CamelCase for C++ classes
RAII for all resource management
No raw new/delete in application code
Comprehensive error handling via custom error handler
